RUBBER EXPANSION JOINT
Functions:
Engineers can solve anticipated problems of vibration, noise, shock, corrosion, turbulence & abrasion, Stresses, Seismic stresses, Fatigue factor and space by incorporating rubber expansion joints into designed piping systems. ‘APHROFLEX’ Rubber expansion joints shall compensate Axial compression, Axial elongation, Lateral, Torsional and Angular Movements.
Service:
Clear, Raw & Sea water – CW, ACW, Offsite Pump House & Condenser inlet & outlet; Acid; Alkali; Oil; Air; Fly hot Ash in ESP Hopper; Slurry –Ash Handling System; Coal Dust – Coal Mill etc.
Our Range of capacity : 25 mm NB to 2600 mm NB
Our Temperature Range : Maximum 2500C
Our Pressure Range : Maximum 40 Kg/Cm2
Polymer range of use for production : Natural, Neoprene, EPDM, Hypalon, Butyl, Buta-N, Silicon, Nitrile, Viton & PTFE / Teflon.
Design Movement : Axial Elongation Axial Compression, Lateral, Angular, Torsional Movement To be designed to meet client’s required design movement,
Types of Rubber Expansion joints:
- Spool “Arch” type – Single arch & multiple arches
- Reducer Type “Taper”
- Rectangular with arch type.
- Belt “Dog bone” type is used as flexible
- Spherical Molded type.
- Telescopic spout, Conical, Cylindrical & Air duct boot.
- Bus Duct Type for Electrical Bus Duct.

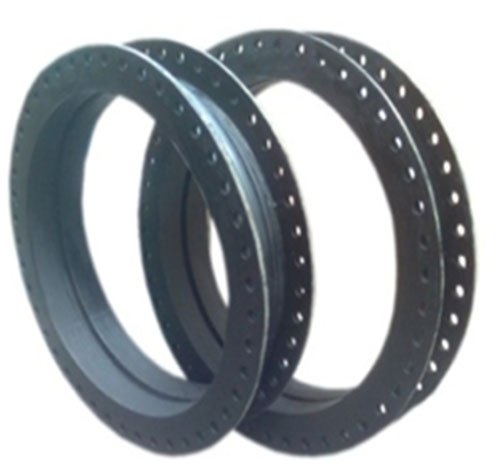

Rubber Expansion Joint

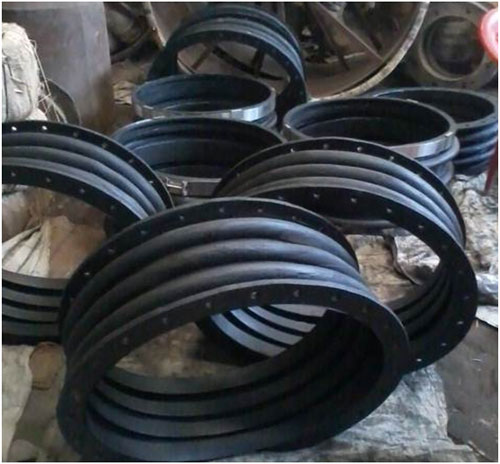

Triple Arch Expansion Joint ( Bellow)

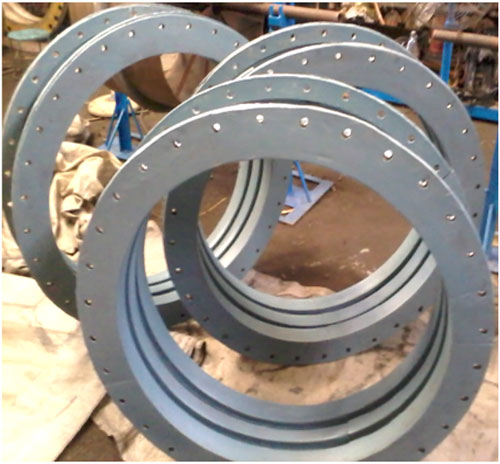

Double Arch Expansion Joint ( Bellow)

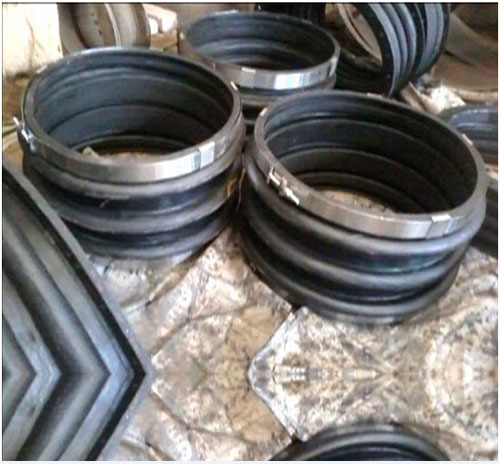

Bus duct Bellow

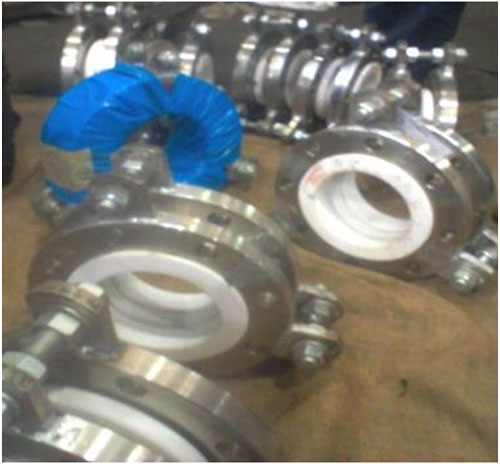

PTFE BELLOW / EXPANSION JOINT

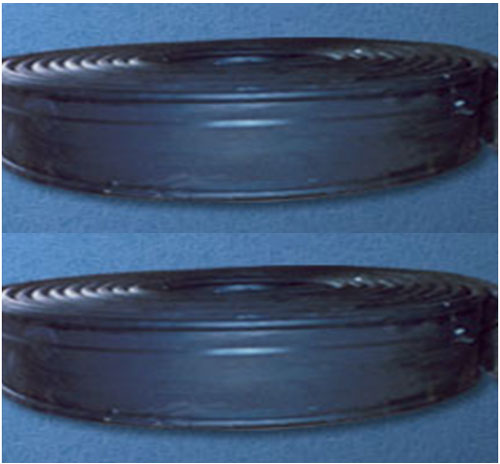

Dog Bone / Belt Type Expansion Joint
CONICAL / SPHERICALBELLOW

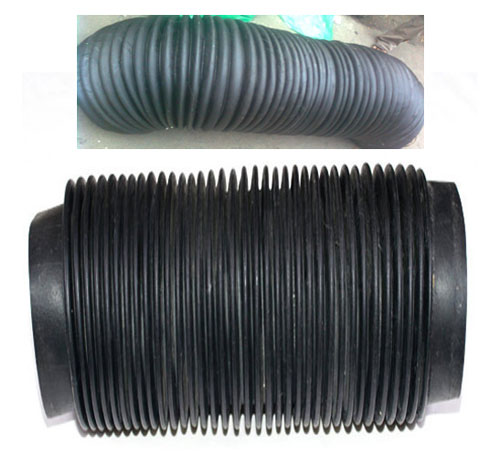

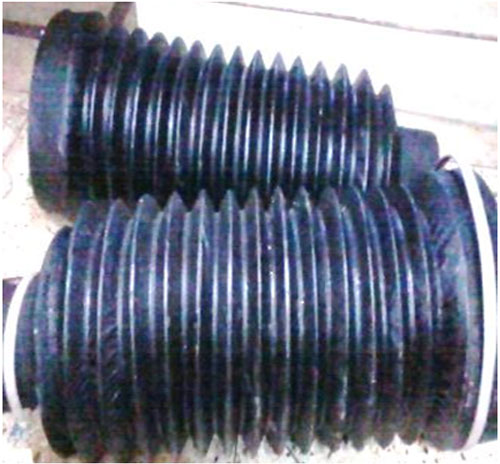

Telescopic Bellow
METALLIC EXPANSION JOINT
A) Stainless steel expansion joint Axial type / universal type
(B) M.S. Fabricated expansion joint Single / malty convolute, Circular / rectangular type
Our range of size : 25 mm NB to 1600 mm NB
Pressure rating : PN 1.0, PN 1.6 & PN 2.0
Bellow : AISI:304, 316, 321 & 310
Design standard : EJMA
Cycle life & Spring rate as per EJMA
Suitable for compensate design movement : axial, lateral, angular as required and suitable for vibration & noise absorption and seismic factor.
Design temperature : up to 300 deg. C
Service:
WATER ( CLEAR, RAW, SEA), OIL, ALKALI, ACID, GAS, STEAM etc.
Location of use :
pump suction, discharge, condenser inlet & outlet, turbine crossover line etc.

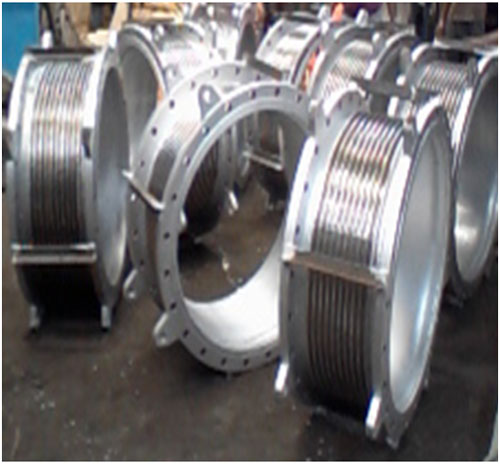

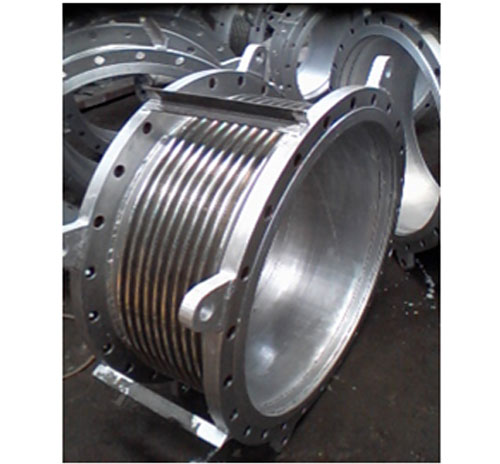

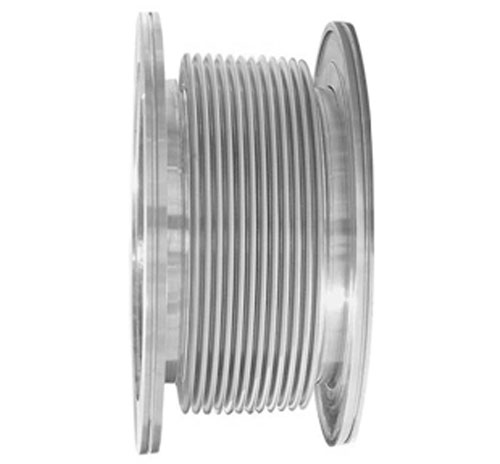

Axial Type Stainless Steel Expansion Joint
Axial Type Stainless Steel Expansion Joint
Axial Type Stainless Steel Expansion Joint

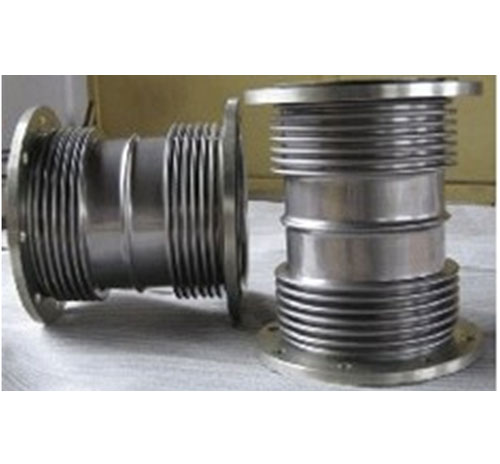

Universal Type Stainless Steel Expansion Joint
Non Metallic / Fabric Expansion Joint
APHROFLEX NON-METALLIC/ FABRIC EXPANSION JOINT
Circular / Rectangular / Conical shape. Non- Metallic / Fabric Expansion Joint: Composite Layers of Fabric to be used, Size- Any size and shape
temperature resistance from –180° C to +800°C.
Service:
Inlet & Out let of Flue Duct system, Chimney, ESP, Pre-heater,
Pacificators, Economizer, ID Fan, FD Fan etc. Compensate design movement i.e. axial, lateral, angular and seismic factor.

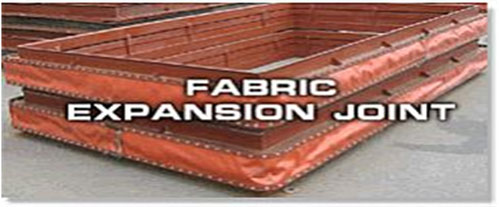

Fabric Expansion Joint

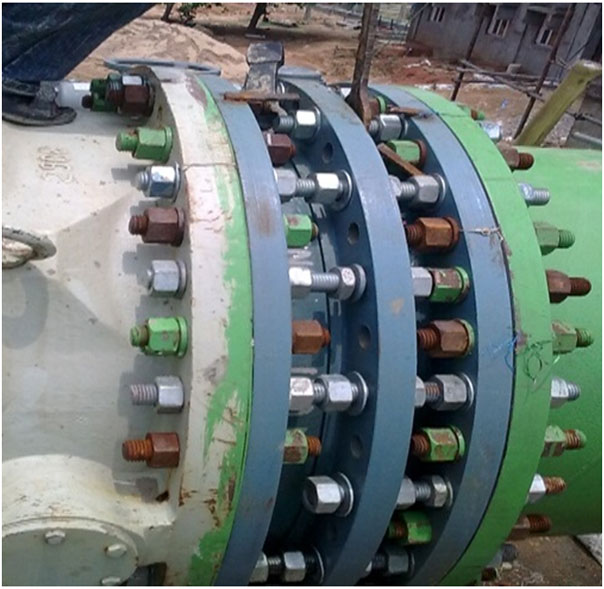

DISMANTLING JOINT
M.S / C.S., Range UP TO 1800 NB
Type : Three / Four Flanged Type
Compensate design movement i.e. axial movement, seismic factor and to dismantle the system.

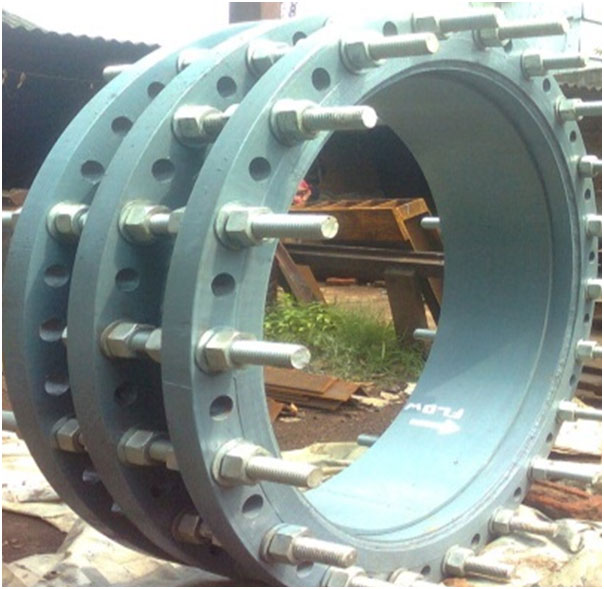

M.S. DISMANTLING JOINT
